M1004
SDR Counter- UAV Digital Source Module (Dual-Channel)
100 MHz–6 GHz Full-Spectrum
Bandwidth configurable for jamming
Dual‑channel jamming output
Software-Upgradable Jamming Codes
Extended Range at Low Power
Detailed Introduction

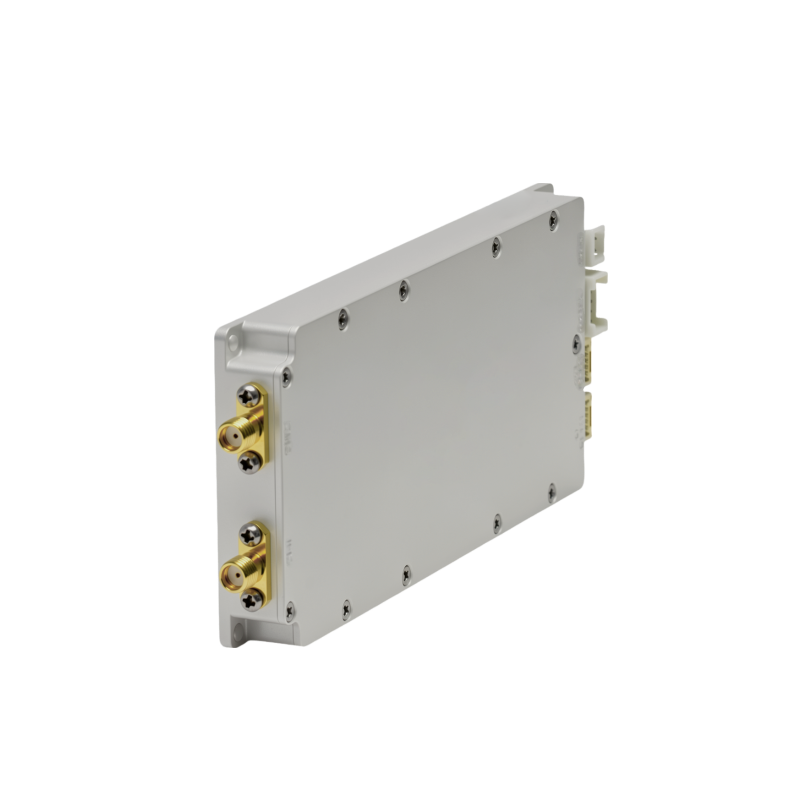

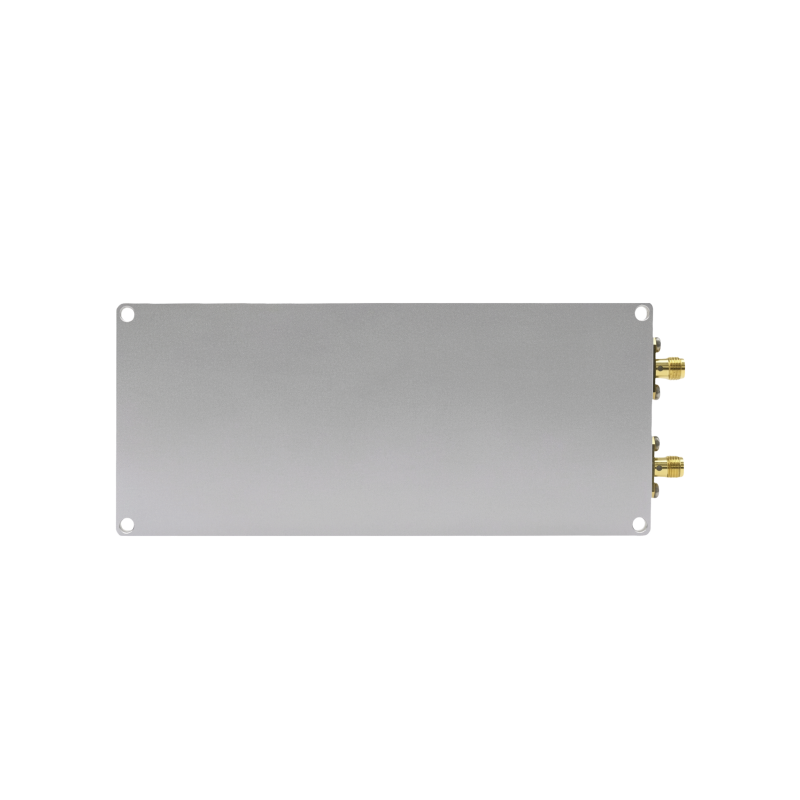

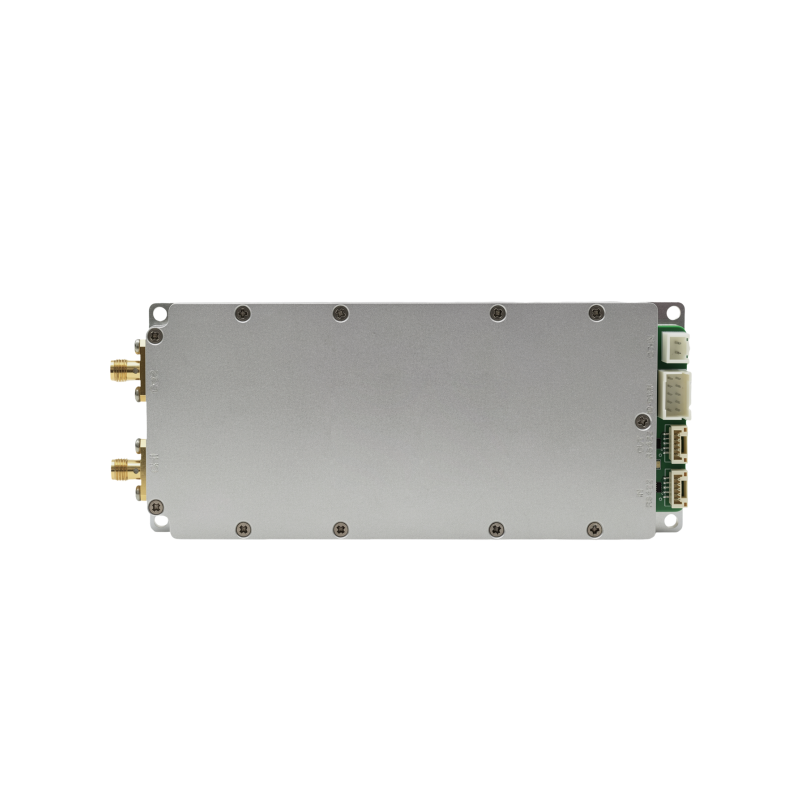

A dual-channel universal digital RF module based on the SDR architecture, featuring a compact modular design and flexible interfaces, it allows for easy integration. The dual channels of the digital source can respectively generate jamming code signals tailored to various UAV communication protocols, supporting common protocols including ELRS, Crossfire, Flysky, OcuSync, LightBridge, and SyncLeas. Converted into RF signals via the SDR platform, the module covers a frequency range of 100MHz to 6000MHz. The output bandwidth of each channel can be flexibly configured to adapt to the jamming codes, with a maximum single-channel real-time bandwidth of 100MHz. The dual channels can output different jamming codes simultaneously to counter two different UAV communication protocols at the same time.
Dual-Channel Jamming: Simultaneously outputs dual-channel jamming signals; the jamming signal for each channel can be configured independently, providing a high level of integration.
Powerful Performance: Full 100MHz–6000MHz frequency coverage ensures effective disruption of all UAV types, with exceptional effectiveness against FPV racing drones; generates targeted jamming codes to achieve longer effective jamming distances with lower output power.
Lightweight and Easy to Use: Features small dimensions, low weight, and flexible interfaces, offering strong adaptability.
Sustained Effectiveness: Module contains various built-in jamming codes, and supports software upgrades to continuously ensure jamming effectiveness.
Specifications
| Item | Specification |
| Frequency Range | 100MHz~6000MHz |
| Max Single-Channel Real-Time Bandwidth | 100MHz |
| Operating Voltage | DC 9-32V |
| Operating Current | 1A Max @9V |
| Output Dynamic Range | ＞25dB |
| Max Output Power | ＞0dBm（OFDM 20MHz） |
| VSWR | ＜2.5（@2.4GHz，Typical） |
| Output Power Fluctuation | ＜1dB（Avg）@25℃ |
| Output Frequency Accuracy | ＜0.1MHz（Typical） |
| Standby Power Consumption | ＜5W |
| RF Output Interface | SMA |
| Communication Control Interface | RS-422 |
| Module Dimensions | 60*140*14mm（excluding connectors） |
| Module Weight | 185g±10g |
| Operating Temperature | -40℃~+70℃ |
Note: Data may vary due to different environments and test targets.Updates will not be separately notified.
