CB-6006

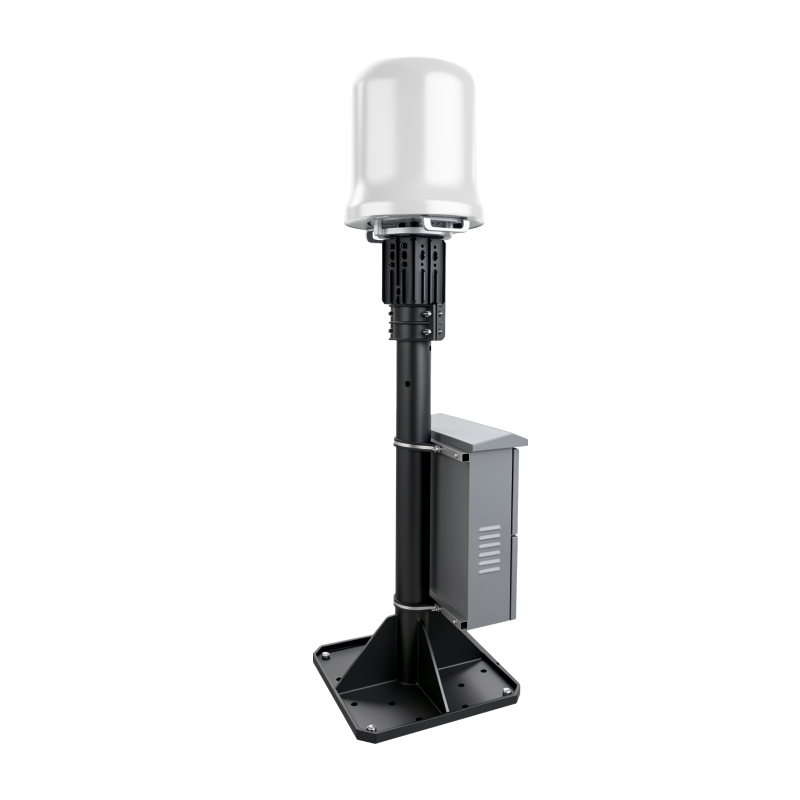

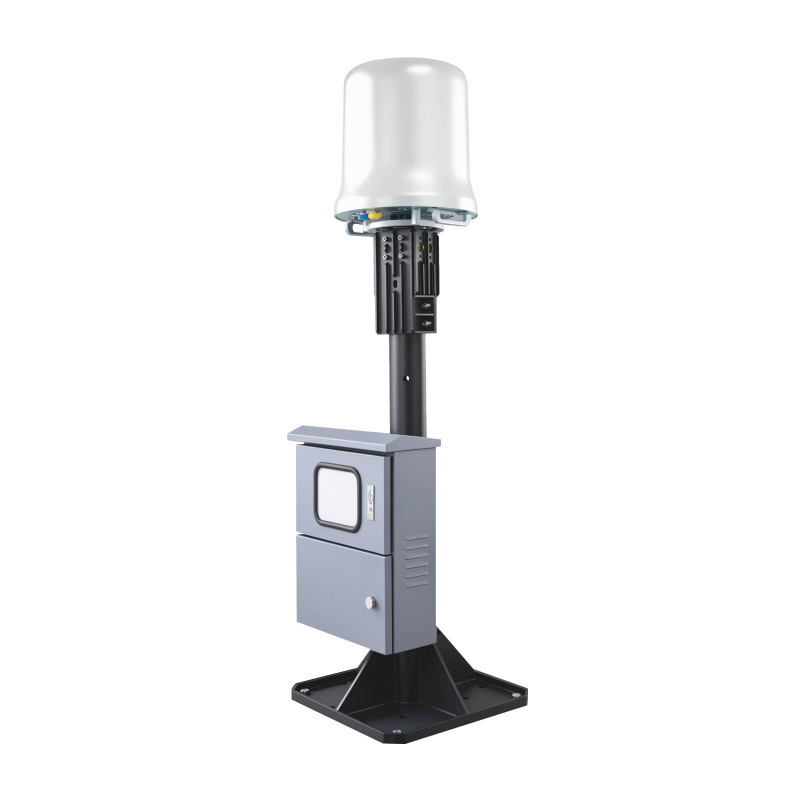

Fixed UAV Detection Equipment
Passive DetectionPassive Detection
AoA Direction Finding
Identify 300+ Drone Models
FPV Video Interception
Detailed Introduction
Utilizing advanced passive detection and AOA direction finding technology, the fixed UAV detection equipment enables 360° omnidirectional reconnaissance, identification, and direction-finding for various drones with long detection range. Leveraging proprietary SDR architecture and AI-powered spectrum recognition, it offers customizable frequency band configuration and multi-interface support for seamless integration with diverse equipment. Capabilities include ultra-long-range detection, single-unit positioning, precise model identification, and trajectory playback.
Passive Detection: Zero EM emission, long range detection, 24-hour automatic wake up, low detectability, strong jam resistance, and excellent concealment.
Multi-Band Detection: Based on SDR architecture, it supports multi-band drone detection with customizable frequency configuration.
High Precision Direction-finding: Based on AoA technology, a single unit delivers direction-finding accuracy of up to ±5°, accurately locking onto drone direction. Three networked units can enable precise positioning to effectively track fast moving targets.
Various Model Identification: Accurately identifies 95% of mainstream drone models on the market, with support for online decoding of the O4 protocol, and also supports AI-based identification of non-protocol drones.
Multi Target Alarm and Tracking: Supports concurrent intrusion alerts for 50+ targets, displays drone and operator distance, angle, altitude, trajectory, SN code, and other information in real time, while dynamically tracking drone flight trajectories.
FPV Video Interception: Supports real time interception of analog video links, reconstructing live video feeds from onboard FPV cameras.
Specifications
| Item | Description |
| Operation method | Radio detection |
| Detection frequency band | 100MHz~6000MHz |
| Detection direction | 360° omnidirectional |
| Detection distance | 5~7km ( open environment ), 1km~2km ( urban environment ) |
| Targets capacity | ≥ 50 |
| Recognizable models | 300+ |
| Direction-finding accuracy | 5RMS° (open environment ) |
| Positioning accuracy | 5m |
| Detection alarm | Support |
| False alarm rate | ≤ 5% |
| Underreporting rate | ≤ 5% |
| Size | Φ400mm*H455mm |
| Weight | < 12.5kg ( without the bracket ) |
| Power supply | AC 220V |
| Protection level | IP66 |
| Operation temperature | -30℃ ~ +55℃ |
Note: Data may vary due to different environments and test targets.Updates will not be separately notified.
AIRCOHN has the final interpretation rights for the relevant content.
