CB-6019
Portable Counter-UAV Shield
Long Standby Time ≥3h
High Concealment & Panic-Free Operation

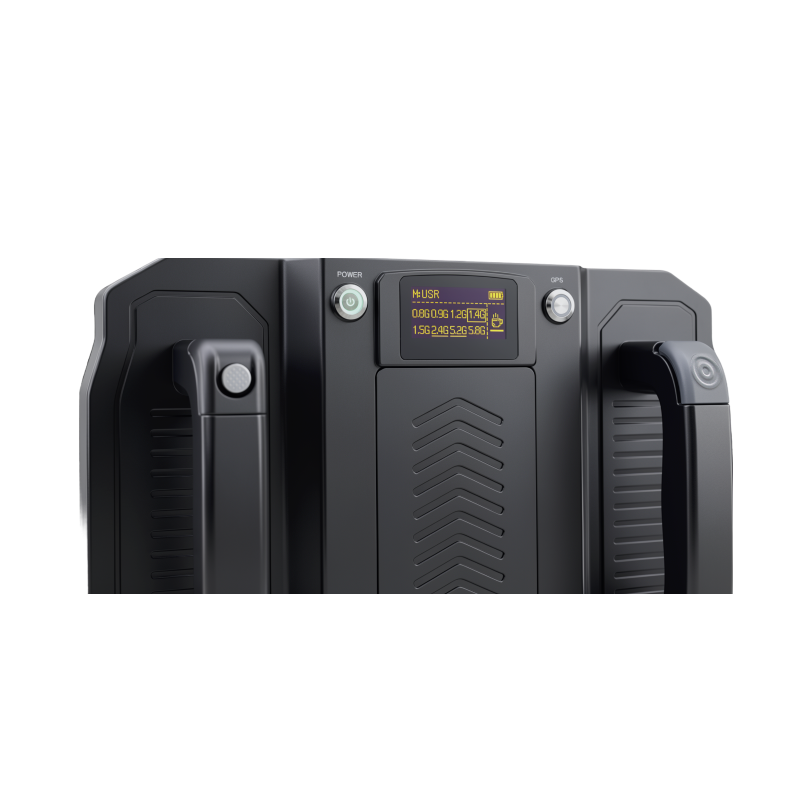

4 Switchable Modes: ALL/FPV/UAV/USR
Detailed Introduction
This SDR-based jammer features configurable frequency modes to effectively block drone data/video transmission, remote control, and navigation signals, with exceptional performance against FPV drones. Its rugged IP54-rated housing offers heat/corrosion resistance in compact, low-profile design, enabling rapid deployment for squad defense, counter-terrorism, event security, and military base protection without causing public alarm.

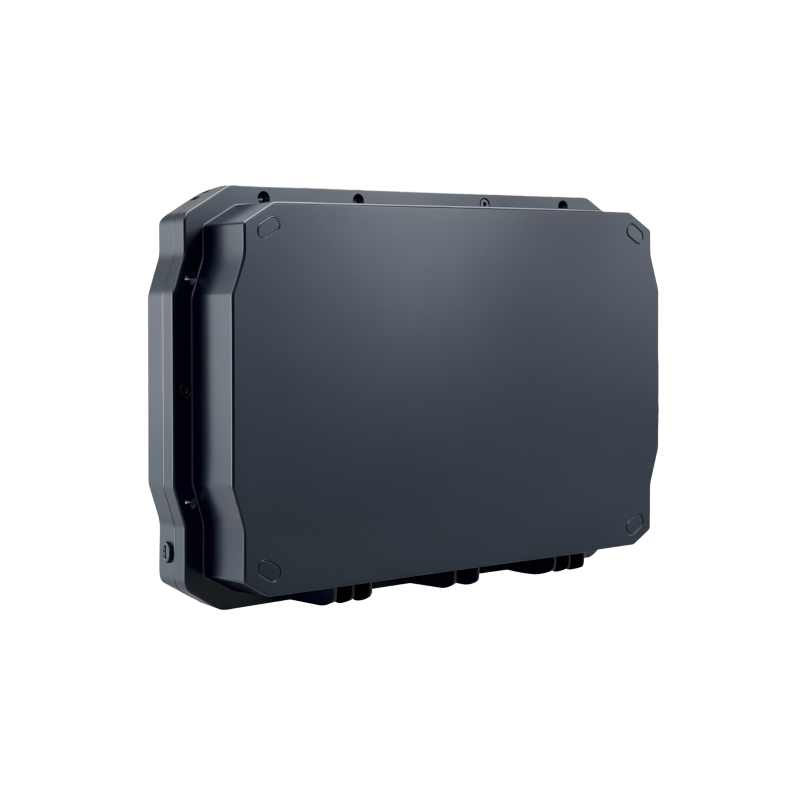

Compact & Covert: Compact and portable with shield-profile design for high concealment and panic-free operation.
Efficient Jamming FPVs: Employs digitally modulated jamming codes to effectively block FPV control signals.
Flexible Setup: Multi-band configuration options (ALL / FPV / UAV / USR) for mission-specific precision operations.
Persistent Effectiveness: Leveraging SDR architecture for algorithm upgrades to maintain effectiveness against evolving drone threats.
Specifications
| Jamming mechanism | SDR (Software Defined Radio) |
| Jamming bands | 800~900MHz / 1.2GHz / 1.4GHz / 1.5GHz / 2.4GHz / 5.2GHz / 5.8GHz |
| Jamming angle | 60° horizontal, 30° tilt |
| Jamming distance | ≥1km (j/c ratio = 1:1), DIY FPV (ELRS/TBS Crossfire protocol) ≥1km (j/c ratio = 2:1), DJI Mini4 Pro / Mavic 3 |
| Total transmission power | <140W |
| Size | 380*270*155mm |
| Weight | 5.6kg±0.1kg (host with battery pack) |
| Power supply / Charging | Lithium battery pack powered; Support battery pack replacement, and whole machine charging |
| Single battery life | >30min (full power transmission) ≥3h (standby mode) |
| Power consumption | <340W (full power transmission) <35W (standby mode) |
| Protection level | IP54 |
| Working temperature | -30℃~+45℃ |
| Operation humidity | ≤93%RH, no condensation water |
Note: Data may vary due to different environments and test targets.Updates will not be separately notified.
AIRCOHN has the final interpretation rights for the relevant content.
