CB-6016
Handheld UAV Detector
3km Automatic Direction Finding(Non-Rotating)
Operator Tracking
Phase-Comparison Direction Finding
Decodes Drone Telemetry: SN, pilot coordinates, altitude & More
Detailed Introduction

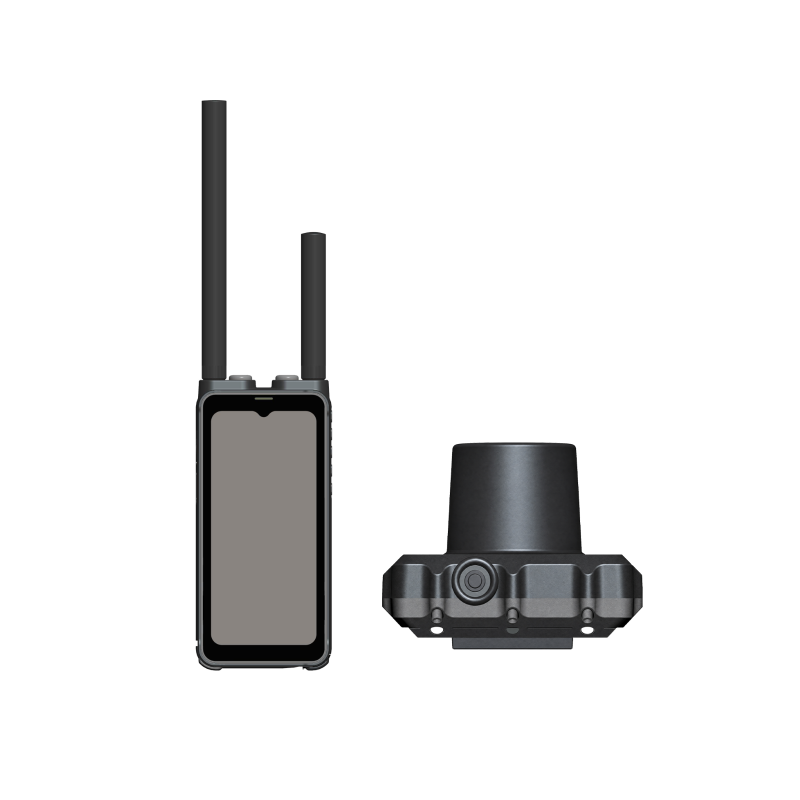

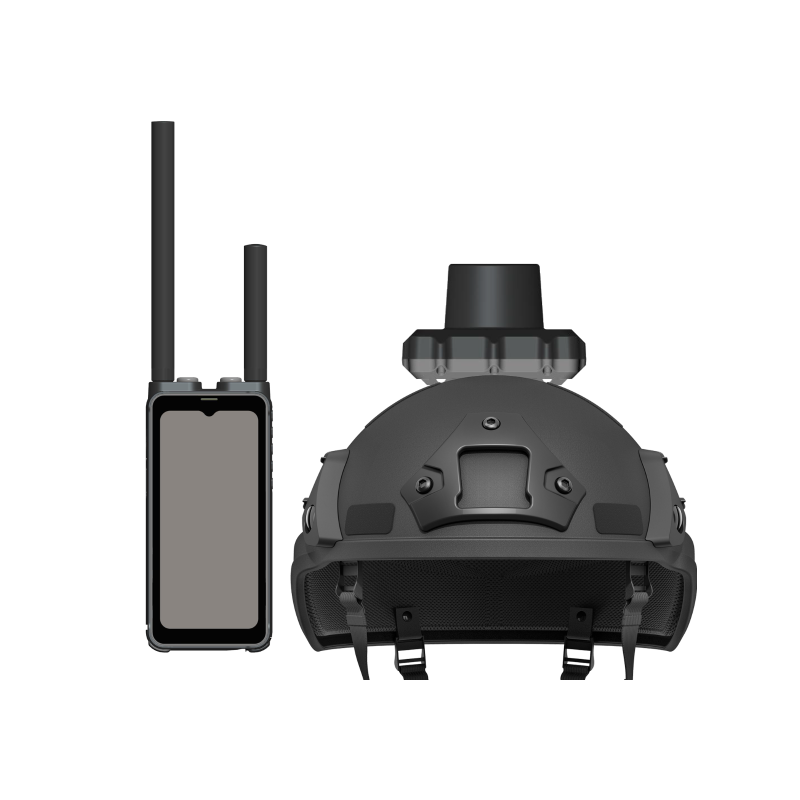

Designed for individual combat operations, the detector utilizes passive detection technology to provide 360o real-time monitoring, identification, and alerting for both DIY FPV drones and conventional UAVs. Equipped with high-precision phase-comparison direction finding, a single set can determine drone bearings. Its modular design consists of a handheld detection unit with 6.5-inch touchscreen (displaying target details, operator location, offline maps, and trajectory replay) and a helmet-mounted direction-finding module, ensuring optimal battlefield adaptability. Ideal for military operations, border patrols, and critical site protection.
Individual Portable: Portable design enables both individual operation and squad-level coordination, with modular architecture for flexible combat adaptation.
Multi-Model Detection: Covers 300MHz-6000MHz for detecting DIY FPV drones and consumer drones (DJI/Autel).
Precision Direction Finding: Phase-based omnidirectional antenna enables automatic drone direction-finding with a single set (no rotation required).
Military-Grade Reliability: IP65 rated, operates in wide temperature ranges, and delivers stable performance under various working conditions.
Long Working Hours: Replaceable lithium-ion battery, supports simultaneous charging and operation, effectively enabling prolonged outdoor operation.
Tactical Scalability: Capable of coordinating with counter-UAV devices or rear units to direct precision strikes.
Specifications
| Item | Description | |
| Detection Unit | Detection band | 300MHz~6000MHz |
| Detection models | DIY FPV drones (ELRS/TBS Crossfire and other protocols) / Conventional drones (DJI/Autel, etc.) / WiFi-based drones, etc. | |
| Detection data | For DJI O3 & RID-compliant drones: Model, serial number, frequency, signal strength, GPS coordinates, distance, direction, speed, altitude, operator location, etc. For Autel/DIY FPV/WiFi drones: Drone type, frequency, signal strength, direction, etc. | |
| Detection range | ≥ 3km (open environment), ≥ 1km (urban environment) | |
| Multi-target detection | ≥ 12 drones (priority-sorted by signal strength) | |

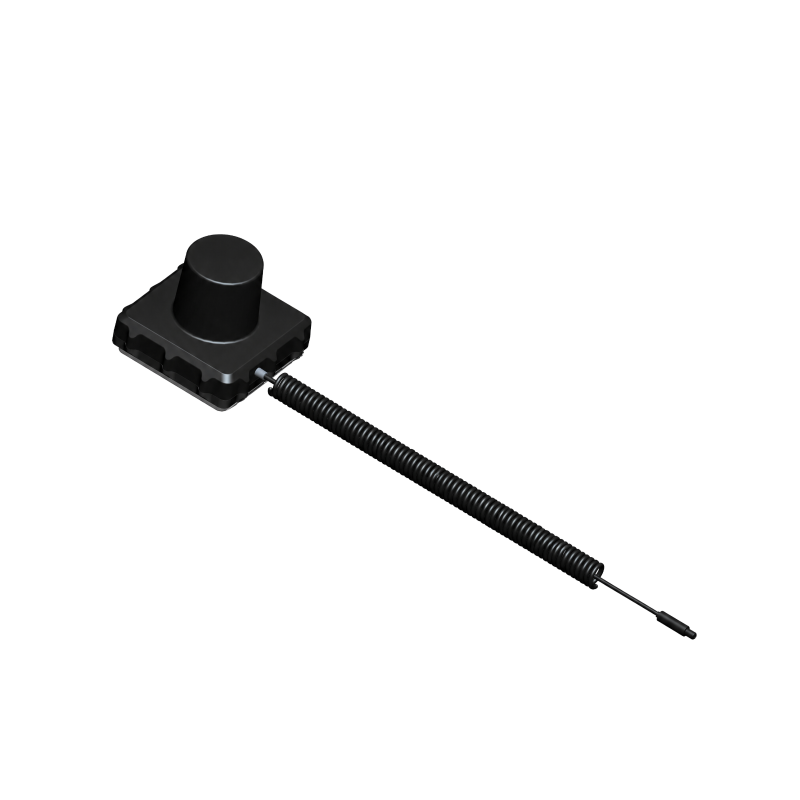

| Direction-finding Unit | Detection direction | 360° omnidirectional |
| Direction- finding distance | ≥1km ( line-of-sight ) | |
| Direction-finding accuracy | < 10° | |
| Whole Machine | Display | 6.5-inch touch LCD screen |
| Whitelist management | Support | |
| External interfaces | USB-C; ETH/RS485; WiFi/BT | |
| Power supply | Replaceable lithium battery, supports operating while charging | |
| Single battery life | ≥5h | |

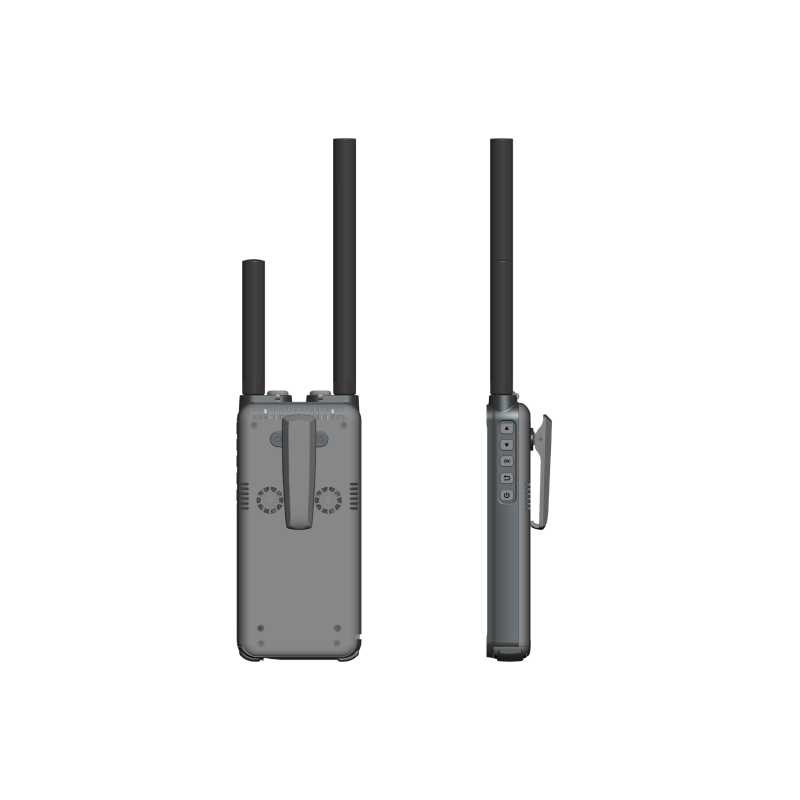

| Size | Handheld host: 190*88*30mm (without antennas) Direction-finding unit: 113*113*90mm | |
| Weight | Handheld host: ≤600g (with antennas) Direction-finding unit: ≤400g | |
| Protection level | IP65 | |
| Operation temperature | -20℃ ~ +55℃ | |
Note: Data may vary due to different environments and test targets.Updates will not be separately notified.
AIRCOHN has the final interpretation rights for the relevant content.
