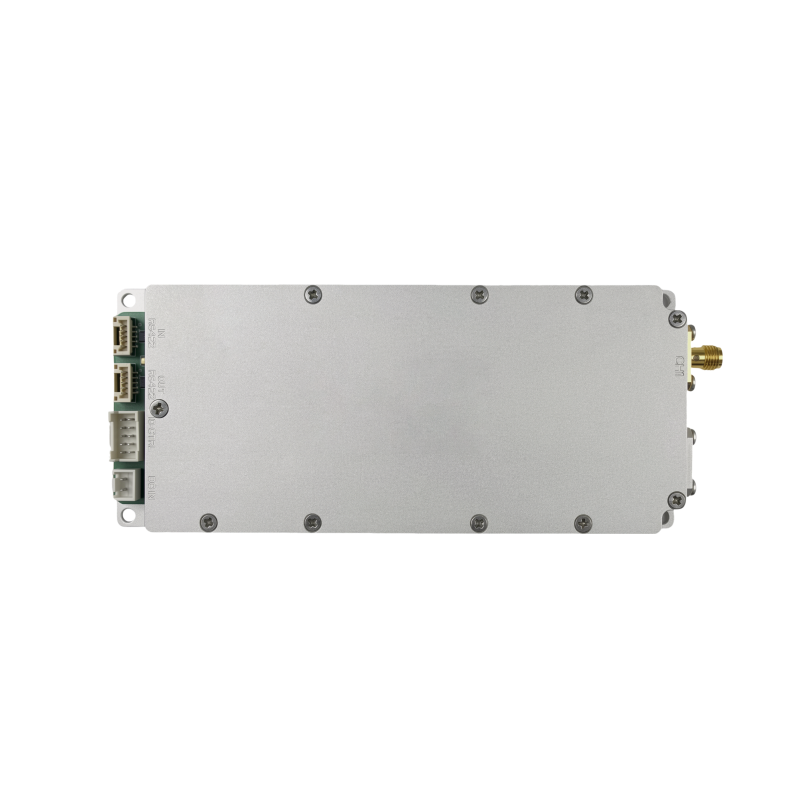

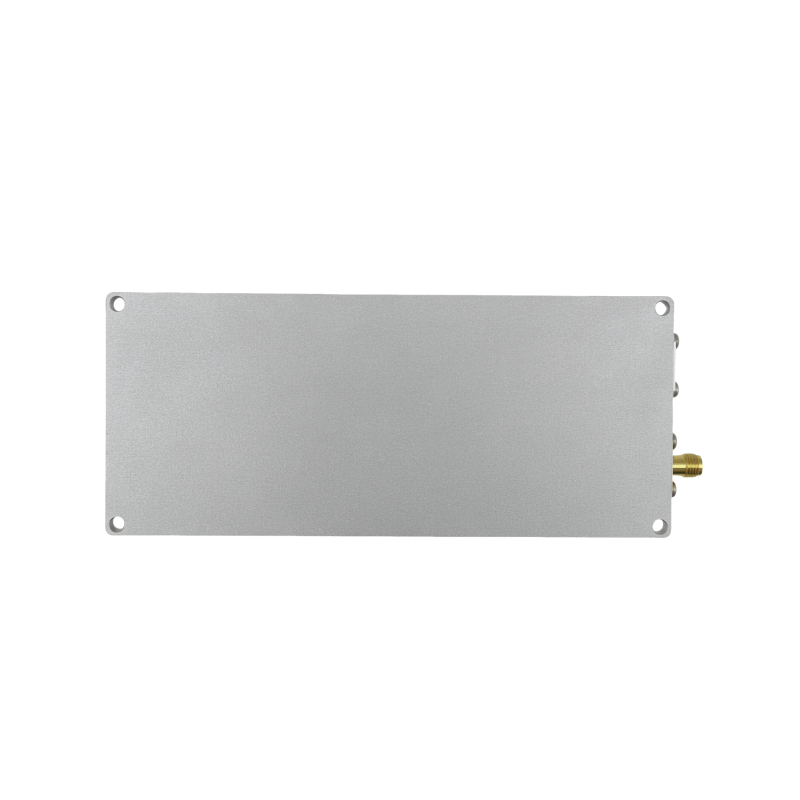

M1003
SDR Counter-UAV Digital Source Module
100 MHz–6 GHz Full-Spectrum
Bandwidth configurable for jamming
Software-Upgradable Jamming Codes
Extended Range at Low Power
Detailed Introduction
A general purpose digital RF module based on the SDR architecture, featuring a modular and compact design with flexible interfaces for easy integration. Its digital source generates jamming code signals tailored to different drone communication protocols. It supports common protocols including ELRS, Crossfire, Flysky, OcuSync, LightBridge, and SyncLeas. The module converts the digital source into RF signals via the SDR platform, covering 100MHz to 6000MHz. The output bandwidth can be configured flexibly to match jamming codes, with a maximum real time bandwidth of 200MHz.
Strong: Full spectrum coverage from 100MHz~6000MHz to effectively jam all types of drones, with particularly strong performance against FPVs. Targeted jamming code generation enables longer effective jamming range at lower output power.
Small: Compact and lightweight, with flexible interfaces and strong adaptability.
Sustainable: Built in multiple jamming sources and supports software upgrades to ensure sustained effectiveness.
Specifications
| Item | Description |
| Frequency Band | 100MHz~6000MHz |
| Max Bandwidth | 200MHz |
| Working Voltage | DC 9-32V |
| Working Current | 1A Max @9V |
| Output Dynamic Range | ＞25dB |
| Max Output Power | ＞0dBm（OFDM 20MHz） |
| VSWR | ＜2.5（@2.4GHz , typical） |
| Output Power Ripple | ＜1dB（Avg）@25℃ |
| Output Frequency Accuracy | ＜0.1MHz（typical） |
| Standby Power Consumption | ＜5W |

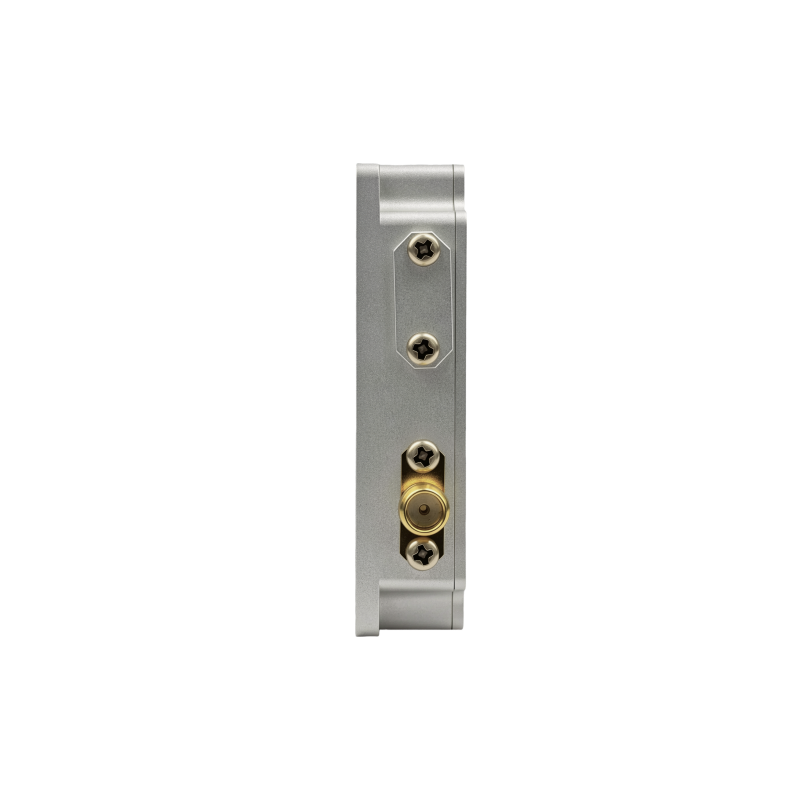

| RF Output Interface | SMA |
| Communication Control Interface | RS-422 |
| Size | 60*140*14mm（without interfaces） |
| Weight | 180g±10g |
| Working Temperature | -40℃~+70℃ |
Note: Data may vary due to different environments and test targets.Updates will not be separately notified.
AIRCOHN has the final interpretation rights for the relevant content.
