CB-6011

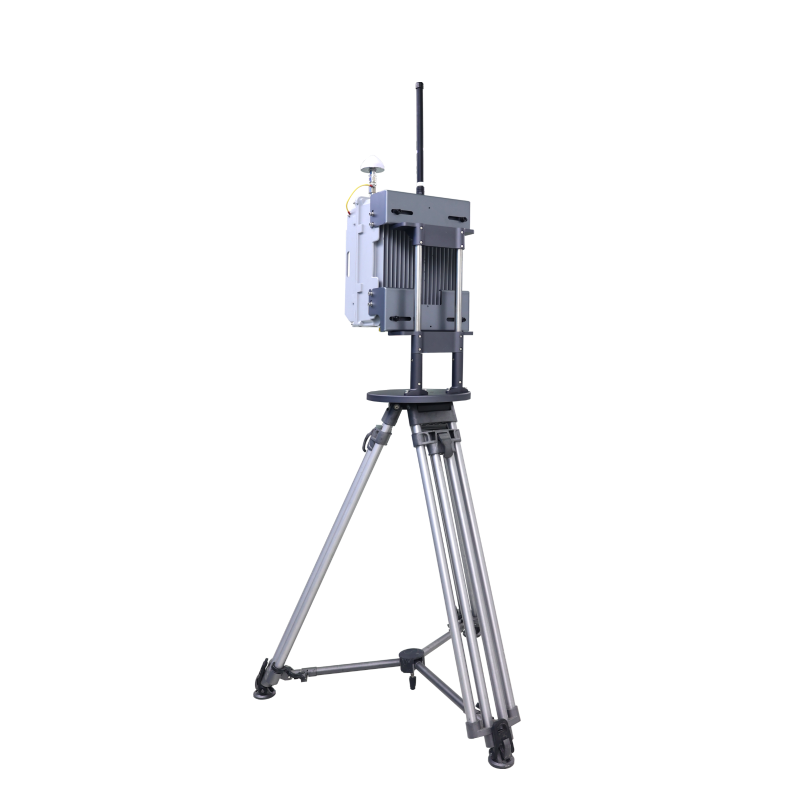

Fixed Navigation Decoy Equipment
Control 10+ Drones Simultaneously
IP66 Waterproof & Dustproof
mW-Level Transmit Power
Detailed Introduction
Leveraging SDR architecture, it generates virtual navigation signals to infiltrate illegal drones’ systems, disrupting their planned trajectories for effective expulsion or area denial.
Full-Signal Coverage: Covers BDS/GPS/GLONASS/Galileo signals to counter dual/multi-mode navigation drones.
Safe & Harmless: Milliwatt-level transmission power, fully compliant with industry regulations.
Multi-Type Spoofing: Effective against all satellite-guided drones, covering most conventional UAVs.
Unattended: 360° omnidirectional coverage with automated defense and active jamming, enabling 24/7 unattended real-time operation.
Controllable Scope: The scope of the decoy area is adjustable and can be flexibly set according to actual needs.
Environmental Adaptability: Built to IP66 protection standards and suitable for complex conditions, ensuring reliable operation day and night, even in dense fog, salt spray, thunderstorms, and heavy rain.
Specifications
| Item | Description | |
| Decoy Unit | Signal types | BDS / GPS / GLONASS / Galileo |
| Signal Sync Accuracy | < 20ns | |
| EIRP | ≤ 10mW ( customizable ) | |
| Effective direction | 360o omnidirectional | |
| Effective distance | 500m~1km ( customizable ) | |
| Swarm defense | Support simultaneous jamming of ≥10 drones of different brands | |
| Boot time | ≤ 5min | |
| Result | Divert / land / No-Fly Zone | |
| Whole Machine | Size | 396mm*306mm*180mm ( without antenna ) |
| Weight | 12kg ( without brackets ) | |
| Power supply | AC 220V ( external power supply ) | |
| Power consumption | < 100W | |
| Protection level | IP66 | |
| Operation temperature | -40℃ ~ +70℃ | |
| Operation humidity | ≤ 93%RH, no condensation water | |
Note: Data may vary due to different environments and test targets.Updates will not be separately notified.
AIRCOHN has the final interpretation rights for the relevant content.
