CB-6020
Portable Detection-and-Jamming Counter-UAV Equipment
3km Detection + 2km Directional Jamming
SDR Detect-then-Jam Agile Jamming
Targeting Aid & Real-Time Threat Display
700MHz–3GHz Wideband Manual Jamming
Detailed Introduction

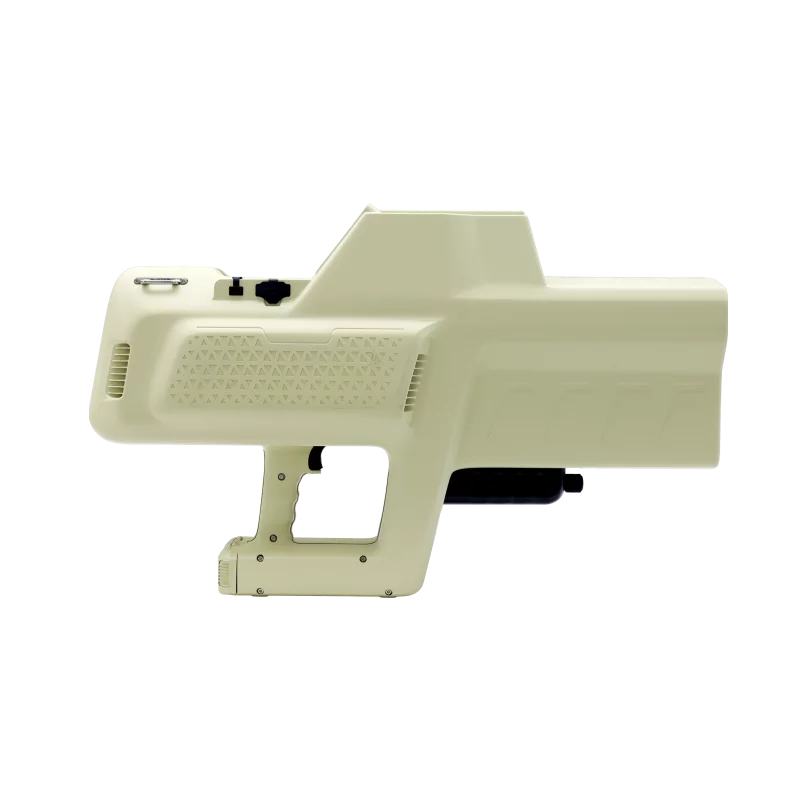

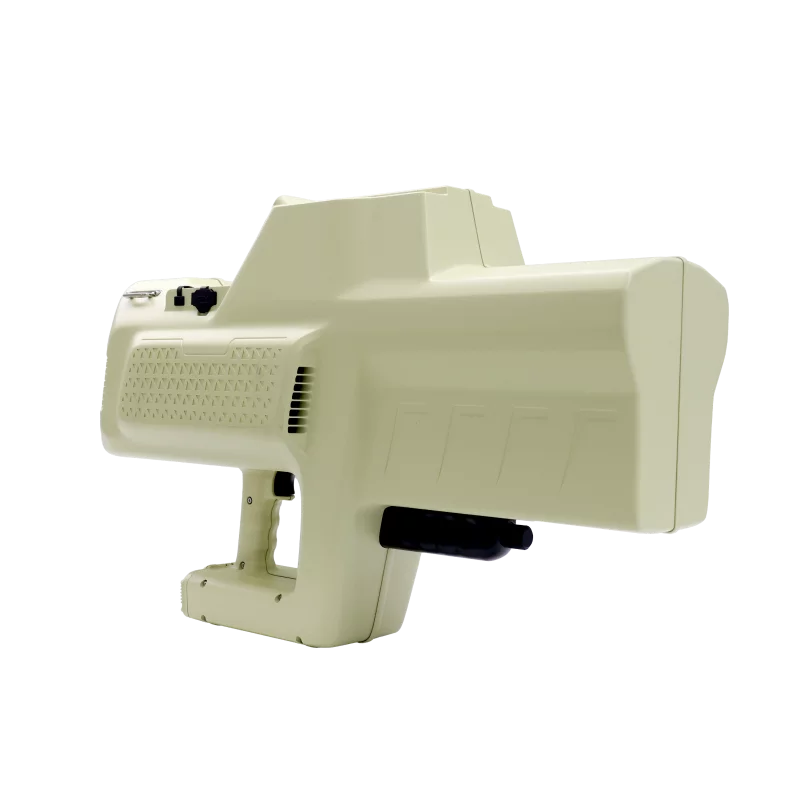

Compact handheld design with no external attachments for easy single-soldier carry. This detect-jam equipment offers 3km omnidirectional detection and 2km directional jamming, effectively countering DIY FPV and conventional drones. Its 360o detection / direction-finding / tracking is paired with SDR jamming technology and assisted targeting for precision strikes – forcing drones to crash, hover, land, or return.
Detect-Jam Integration: Integrates drone detection and jamming for 3km omnidirectional detection and 2km directional countermeasures.
Effective Jamming: Utilizes dynamic adaptive jamming codes to effectively disrupt DIY FPV and conventional drones, blocking flight control, data/video transmission, and navigation signals.
Full-Band Jamming: Covers global drone frequency bands with customizable configurations for diverse defense needs.
Custom Jamming: Equipped with wideband spectrum detection and supports manual tuning of jamming frequencies to counter non-standard drones.
Aided Positioning: Features assisted targeting with real-time threat display, lock-on positioning, and operator location tracking.
Specifications
| Item | Description | |
| Detection Unit | Detection bands | 100MHz~6000MHz |
| Detection models | DIY FPV drones (ELRS/TBS Crossfire and other protocols), conventional drones (DJI/Autel/Parrot, etc.), WiFi-based drones, etc. | |
| Detection direction | 360° omnidirectional | |
| Detection distance | ≥ 3km (open environment), 0.5~1km (urban environment) | |
| Direction-finding accuracy | 10° (open environment) | |
| Jamming Unit | Jamming bands | 400MHz / 800~900MHz / 1.2GHz / 1.4GHz / 1.5GHz / 2.4GHz / 5.2GHz / 5.8GHz / 700MHz~3GHz Software-defined jamming channel |
| Defense angle | Directional jamming, horizontal 45°, tilt 30° | |
| Jamming distance | ≥ 2km (j/c ratio = 2:1), DJI Mini4 Pro / Mavic 3 ≥ 1km (j/c ratio = 1:1), DIY FPV (ELRS/TS Crossfire protocol) | |
| Response time | < 5s | |

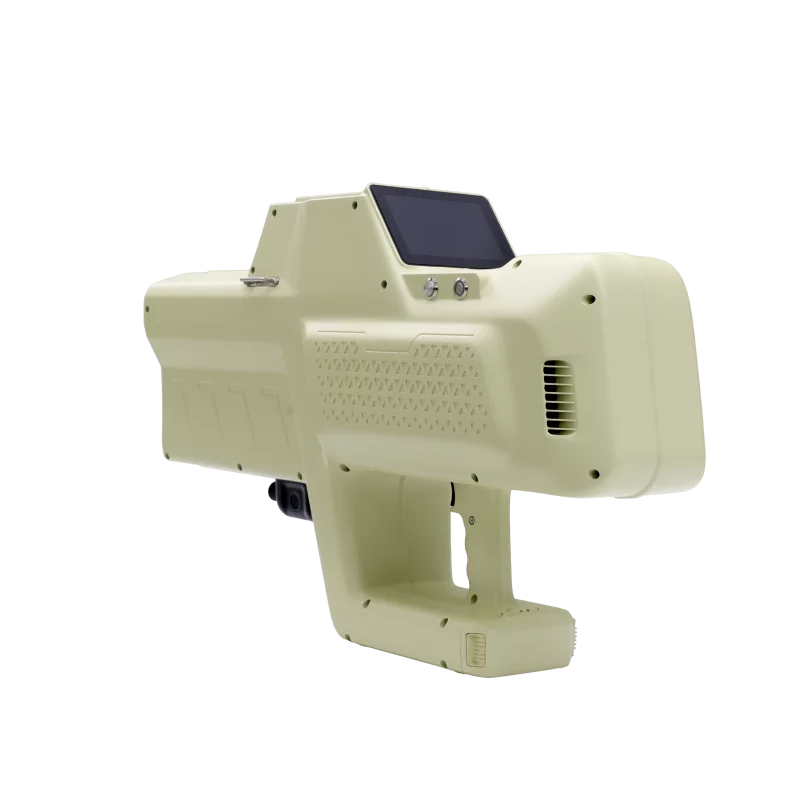

| Whole Machine | Information display | 5-inch display: self-check status, drone models, jamming bands, date time, battery level, jamming duration, operation logs, etc. |
| Battery type | Replaceable lithium battery | |
| Single battery life | ≥ 20min (full power transmission) | |
| Size | 653*407*187mm±5mm | |
| Weight | < 7kg | |
| Protection level | IP54 | |
| Working temperature | -30℃ ~ +55℃ | |
Note: Data may vary due to different environments and test targets.Updates will not be separately notified.
AIRCOHN has the final interpretation rights for the relevant content.
