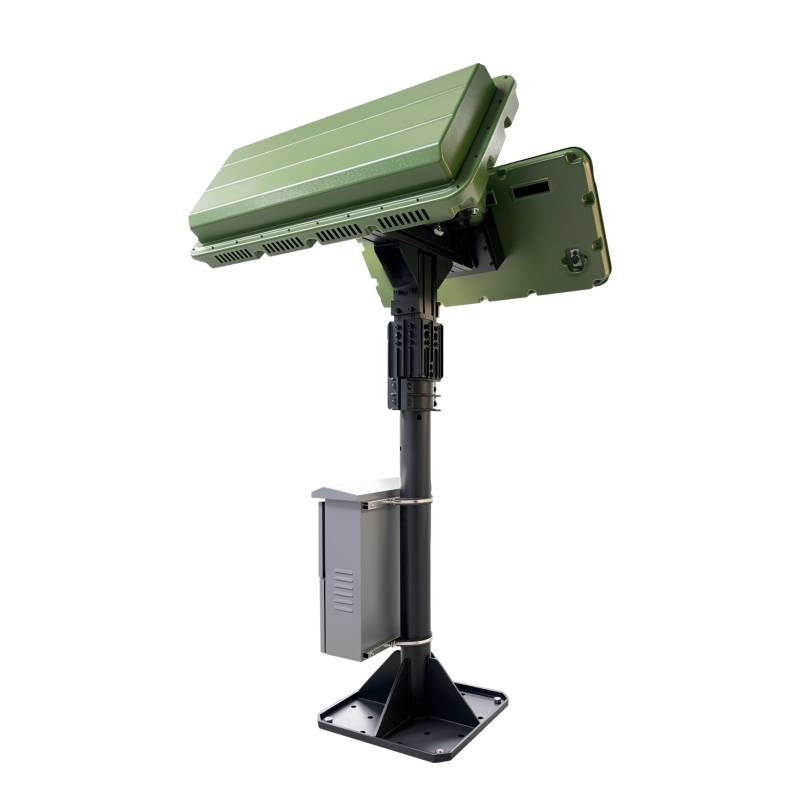

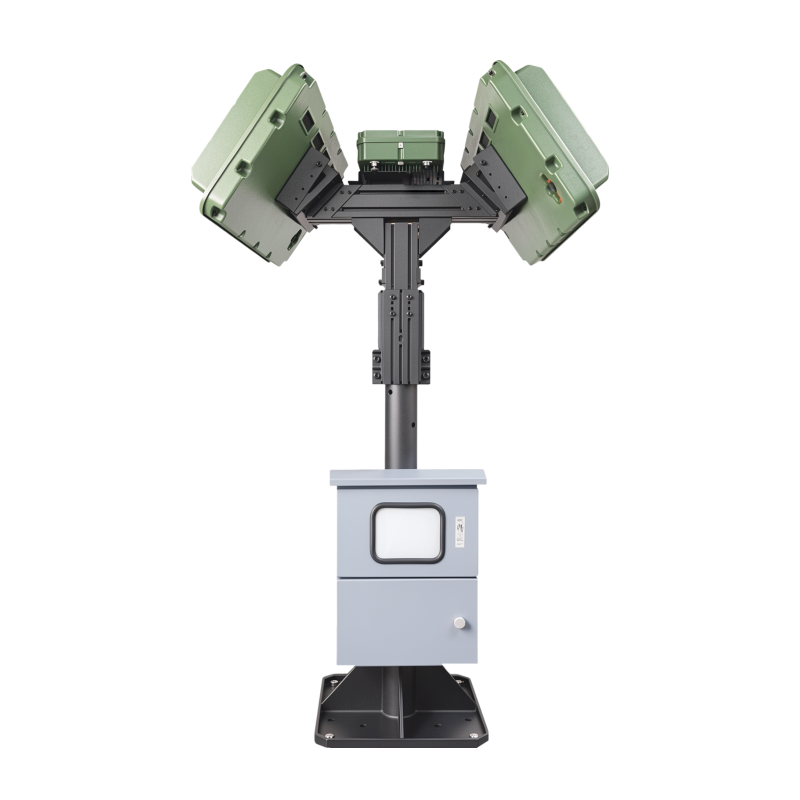

CB-6010
EWALL
No Interference with Ground Communications
IP66 Waterproof & Dustproof
Effective Against All Drone Models
Highly Effective on FPV Swarms
Detailed Introduction
SDR-based drone countermeasure innovatively redefines low-altitude defense. EWALL’s unique upward jamming creates an “electronic shielding wall” to block drones, while multi-unit networking enables precise perimeter defense. Its hollow-design jamming zone avoids disrupting ground communications, solving public nuisance issues from omnidirectional jamming. Ideal for military camps, command posts, government sites, prisons, anchorages, and border fortresses.
Daily Comms Uninterrupted: Single unit provides 180° vertical defense; multi-unit networks create hollow “electronic shields” without disrupting communications.
Multi-Model Jamming: SDR digital jamming codes deliver superior disruption against all drone types, with exceptional effectiveness against FPV swarms.
Flexible Networking: Adaptive perimeter deployment enables unified platform management for targeted area control.

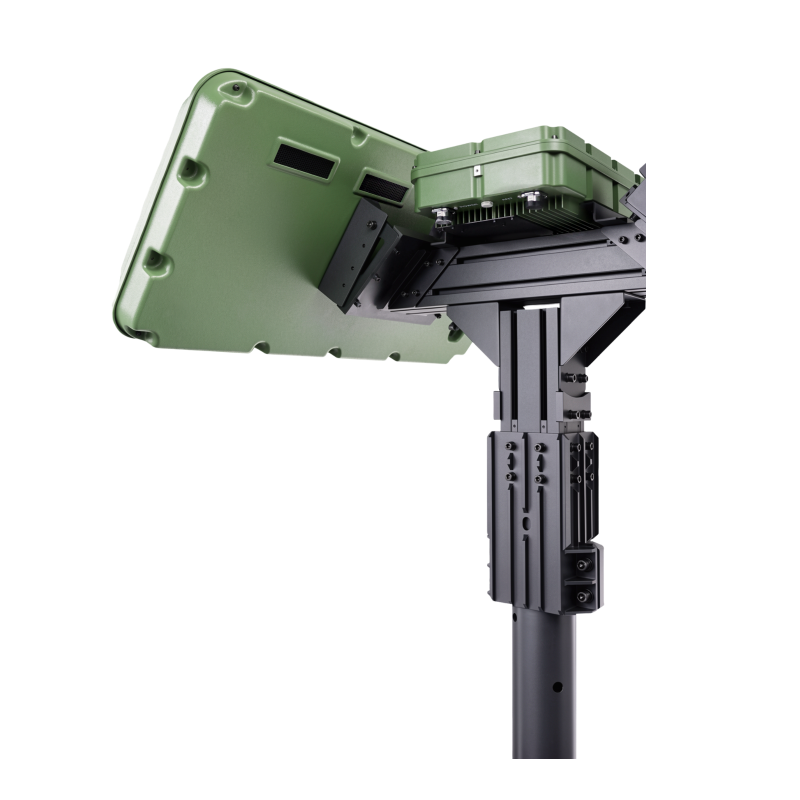

Multi-Scenario Ready: Modular unit with steerable antenna beams for multi-scenario adaptability.
Reliable & Rugged: Built to IP66 protection standards, waterproof, dustproof, and lightning-resistant, ensuring reliable performance in harsh environments including dense fog, salt spray, thunderstorms, and heavy rain.
Specifications
| Item | Description |
| Jamming method | Radio jamming |
| Jamming mechanism | SDR ( Software Defined Radio ) |
| Jamming bands | 400MHz / 800 MHz / 900MHz / 1.2GHz / 1.4GHz / 1.5GHz / 2.4GHz / 5.2GHz / 5.8GHz |
| Defense direction | Directional jamming ( upwards ) |
| Defense range | 600m width ( the highest point ) * 300m height * 50m thickness |
| Jamming response time | < 5s |
| Transmission power adjustment | Support |
| Size | 1150*1000*860mm (45°, excluding pole) |
| Weight | ≤72kg (excluding pole and cables) |
| Power supply | AC 220V ( external power supply ) |
| Protection level | IP66 |
| Operation temperature | -40℃ ~ +55℃ |
Note: Data may vary due to different environments and test targets.Updates will not be separately notified.
AIRCOHN has the final interpretation rights for the relevant content.
