CB-6025F

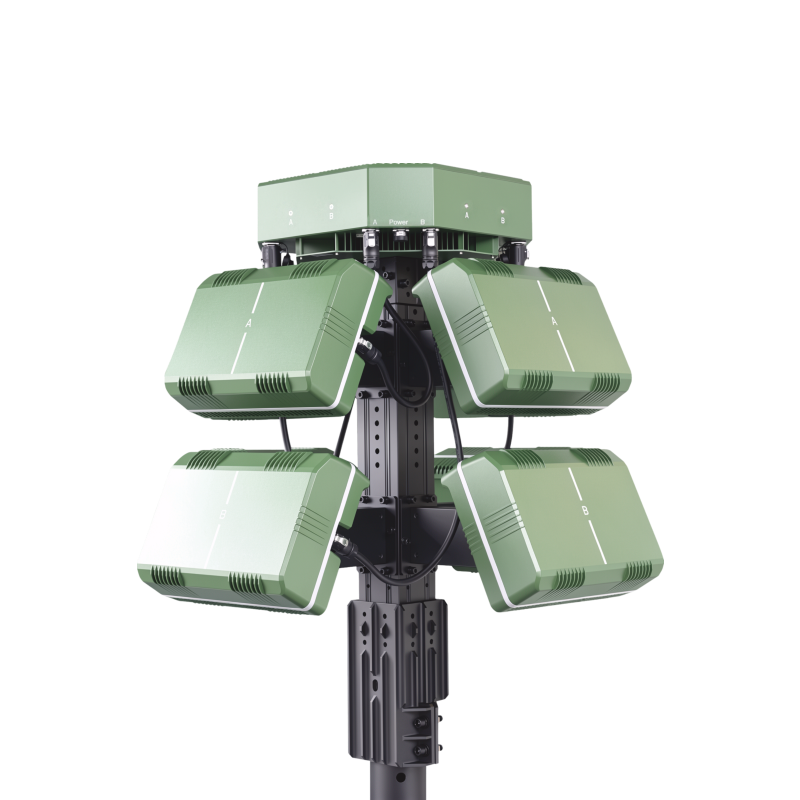

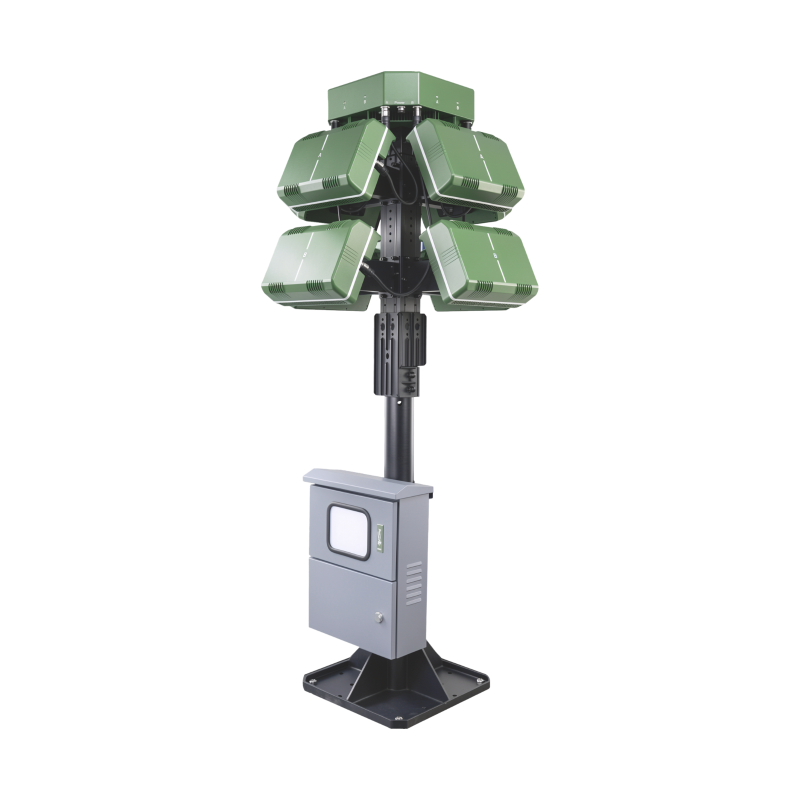

Fixed Four-sided Formation Counter-UAV Equipment
4-Panel Omni Jammer
Switchable FPV / FPV+UAV Modes
IP66 Waterproof & Dustproof
Detailed Introduction
A fixed four-sided formation counter-UAV equipment adopts SDR technology to effectively block control, video transmission and navigation signals of FPV drones and conventional drones, building a solid security defense line for key areas and important assets. Adopting a unit modular design, the whole equipment integrates an FPV jamming unit, a conventional UAV jamming unit and a control unit. Built to military-grade standards, it adapts to a variety of application scenarios, defends key sites against FPV attacks and protects critical assets.
Efficient Jamming FPVs: Utilizing digitally modulated jamming codes, it effectively jams all FPV types, covering mainstream protocols like ELRS and TBS Crossfire.
Multi-Model Jamming: Covers data/video transmission, control, and navigation bands of global conventional drones for effective multi-drone jamming.
Flexible Configuration: Supports selectable configuration for FPV-only or FPV + UAV jamming to meet customized defense needs.
High Reliability: Supports 24/7 continuous operation in harsh outdoor environments with stable performance.
Specifications
| Item | Description | |
| Jamming Unit | Jamming mechanism | SDR (Software Defined Radio) |
| Jamming bands (Counter-FPV units) | 400MHz (optional) / 800MHz / 900MHz / 2.4GHz / 5.8GHz | |
| Jamming bands (Counter-UAV units) | 1.2GHz / 1.5GHz / 2.4GHz / 5.2GHz / 5.8GHz | |
| Jamming signal type | UAV data/video transmission signal, UAV remote control signal, UAV navigation signal | |
| Jamming angle | Single unit: Horizontal > 90°, tilt > 45° Four-sided formation to realize 360° coverage | |
| Jamming distance | >1km (j/c ratio = 1:1), DIY FPV (ELRS/TBS Crossfire protocol) >1km (j/c ratio = 2:1), DJI Mini4 Pro / Mavic 3 | |
| Total transmission power | ≤ 120W per unit (configurable) | |
| Whole Machine | Size | 917*917*1040mm (excluding the pole mount) |
| Weight | 90.5kg (excluding the pole mount) | |
| Power supply | AC 220V to 24V | |
| Protection level | IP66 | |
| Operation conditions | -40℃ ~ +55℃ / ≤ 93%RH, no condensation water | |
Note: Data may vary due to different environments and test targets.Updates will not be separately notified.
AIRCOHN has the final interpretation rights for the relevant content.
